1.1 - Design House 99 - Step 1

1.1.1 - File Preparation

Opening the AutoCAD on your computer, the screen will be as shown in Fig.1.1.1.1.

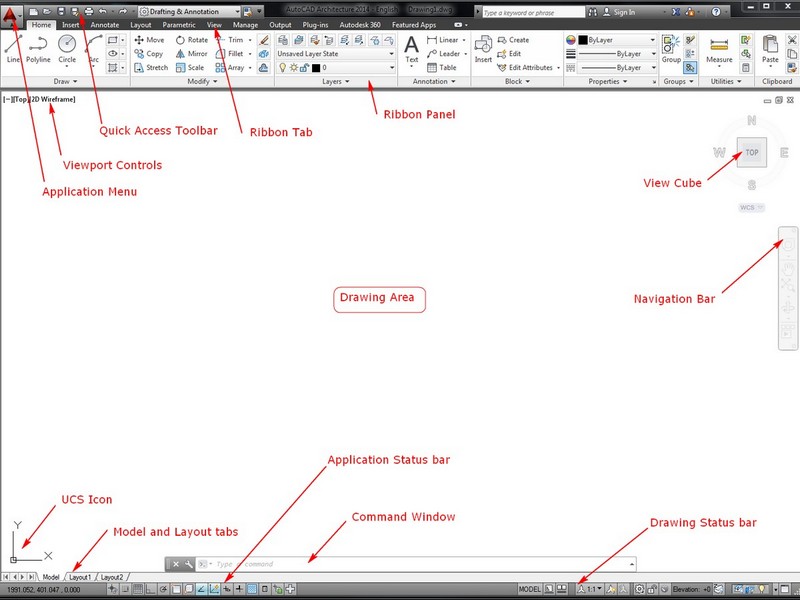

Fig.1.1.1.1 AutoCAD Interface

First you have to create in your computer a folder with the name 'myProject', and within it another folder with the name 'house99'. Within the folder house99 create three more subfolders with the names, step1, step2, step3 respectively (Fig.1.1.1.5).
These are the folders where you will storage the drawing files that you will create during the design of your project house99.

Before doing anything else, go to status bar, click on the 'Display drawing grid' icon (Fig.1.1.1.2), to turn it OFF (it has to be grey color, when the color is blue it is ON). You can also change the 'Display drawing grid' beteween On and OFF by clicking F7.

Fig.1.1.1.2 - Display drawing grid

Go back to the open Application menu (Fig.1.1.1.3) and move your cursor over New.
At the new window 'Create a new drawing' that will be displayed (Fig.1.1.1.3) select 'Drawing'.

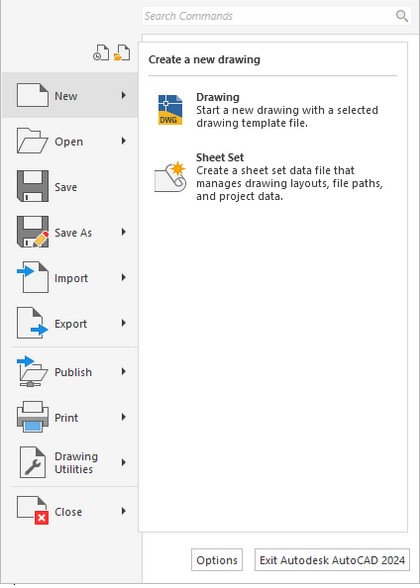

Fig.1.1.1.3 - Application Menu - New Drawing

At the new window 'Select Table' that will be displayed (Fig.1.1.1.4) select from the list the Template names 'acad' and click Open.
In the Select Template dialog box, select acad.dwt and click Open. Metric users should select acadiso.dwt and then click Open.

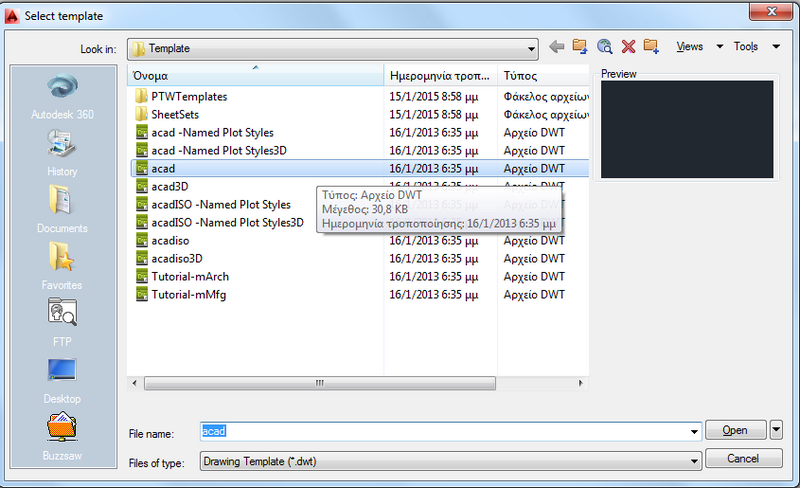

Fig.1.1.1.4 - Select a Template for the New Drawing

A blank window appears in AutoCAD where you will start designing the project.

Save your drawing  in folder myProject/house99/step1 with the name  house99_starting.dwg, as shown in Fig.1.1.1.5.
Its full path will be: myProject/house99/step1/house99_starting.dwg.

Fig.1.1.1.5 - house99 - folders tree

Setting Units and Scale

Now that the basic file is set up, you will start your design drawing its layout as shown in Fig.1.1.0.1. (In this step you will not set dimensions and text, and the color will be black).

Before you start to draw, you decide on the units of measurement to be used in the drawing, and set the format, precision, and other conventions to be used in coordinates and distances.
Every object you create is measured in drawing units. Before you start to draw, you must decide what one drawing unit will represent based on what you plan to draw. Then you create your drawing at actual size with that convention.
AutoCAD does not care; it gives you a system and lets you adapt it to any situation or design. Then, you just draw in real-life units or, as we say in CAD, 1-to-1 units. This is the Golden Rule of AutoCAD. Always draw everything to real-life size. Do not scale objects up or down.

For example, the objects in  a drawing might represent a house with external dimensions that are each 12,5 and 10,00 meters long, or a section of a mechanical part that is measured in millimeters. In the first case the units will represent meters, this means that when you type 2 you mean 2 meters, in the second case when you type 200, you mean millimeters.
The default unit system in AutoCAD, until you change it, is a simple decimal system of the type we use in everyday life. However, it is unitless, meaning that the 2 or 3 you entered could have been anything—feet, inches, yards, meters, miles, or millimeters.

Architects drawing in imperial unit system, prefer their distances broken down to feet and inches, because it is always easier to understand and visualize a distance of 22'-6" than 270". To switch to architectural units, type in units and press Enter, or select Format → Units… from the cascading menus, and the dialog box in Figure 1.1.1.6 appears.
Simply select Architectural from the drop-down menu at the upper left and ignore the rest of the options in the dialog box; there is no need to change anything else at this point. Now, as you draw and enter in units, they are recognized as feet or inches. To enter in 5 feet (such as when using the offset command), type 5'. To enter in 5 inches, there is no need for an inch sign, just type in the number 5; AutoCAD understands. To mix feet and inches, type in 5'6, which is of course 5'-6"; there is no need for a hyphen either.

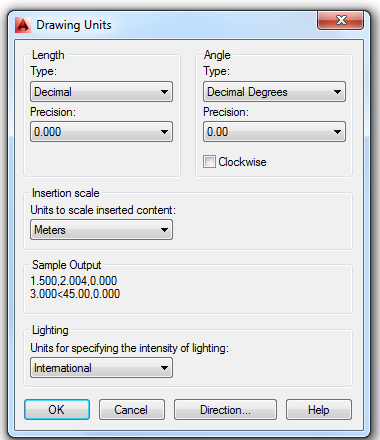

Fig.1.1.1.6 - The Drawing Units

For our project we will use the decimal system.
On the Drawing Units table (Fig.1.1.1.6) select the following:
Length ► Type = Decimal, Precision = 0.000, Insertion Scale = Meters, and Angle ► Type = Decimal Degrees, Precision = 0.00.
It means that if you want to draw a line with length 2 meters, you will type 2, if the length of the line is 2 meters and 30 centimeters you will type 2.30.
