1.1 - Design House 99 - Step 1

1.1.4 - Draw the interior walls

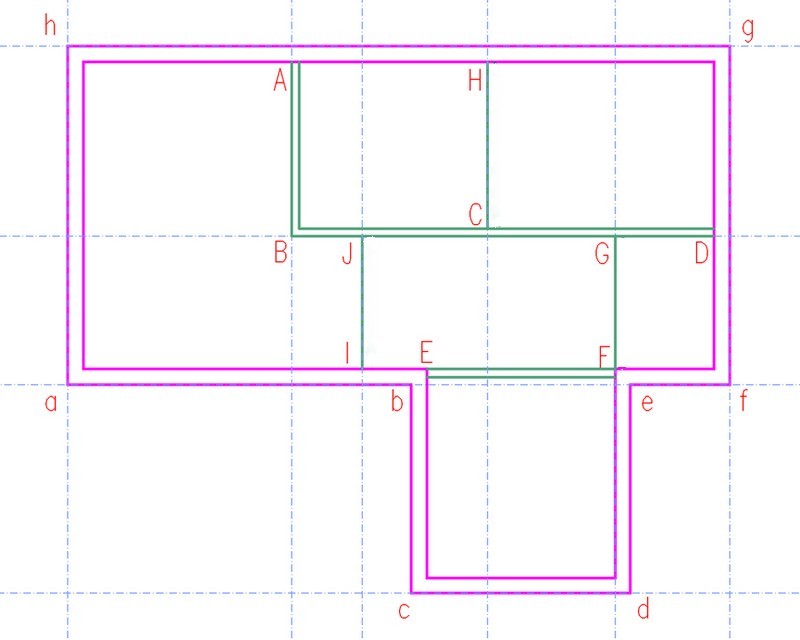

The arrangement of exterior and interior walls of the floor plan is like the one you see in (Fig. 1.1.4.1).
You will follow the dimensions that you see in this sketch, to design the interior walls of the floor plan, using for your help axis.

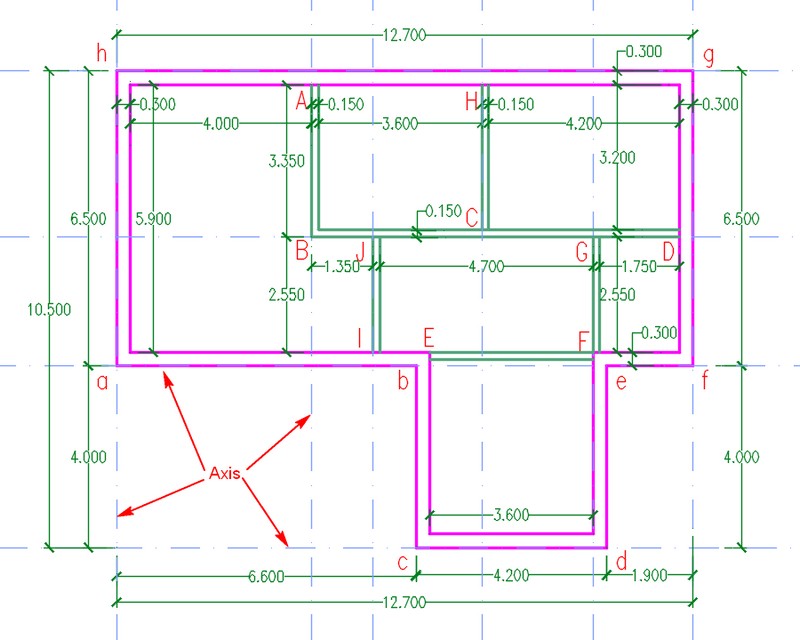

Fig.1.1.4.1 - house 99 - exterior - interior walls with axis

You will start drawing the walls (AB), (BD) and (EF).
Now you have to do some work on the layers. Create two new layers, one with the Name: A-Axis, Color: Cyan, and Linetype DASHDOT, and make it Current, and another with Name: A-Interior-Wall, Color: Green, and Linetype Continiouss.
To do this:

  • Click Home tab ►Layers panel ►click Layer Properties icon ►select icon New Layer ►for the Name type A-Axis , for Color select Cyan, for linetype select DASHDOT. set it Current and press ENTER. (Fig 1.1.4.2).
  • Click Home tab ►Layers panel ►click Layer Properties icon ►select icon New Layer ►for the Name type A-Wall-Inter , for Color select Green, for linetype select Continuous and press ENTER. (Fig 1.1.4.2).
  • Click Home tab ►Layers panel ►click Layer Properties icon ►select icon New Layer ►for the Name type A-Wall-Inter , for Color select Green, for linetype select Continuous and press ENTER. (Fig 1.1.4.2).

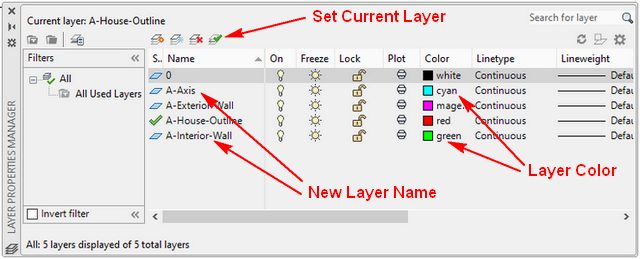

house99_layerManager_axis_interiorWall_t640259 Fig.1.1.4.2 - Create new Layers

Draw the Axis through (ha) and (hg):

  • Using the Line tool on ribbon, draw two Axis (line with layer A-Axis), one that passes along the line (ha) and one on the line (hg) (Fig.1.1.4.1).
    To do this:
  • With the layer A-Axis set as current, click Home tab ► Draw panel ►select Line icon (hover on) aca21 icon drawLine f4564 p3, and draw a dashdot line extended beyond points (h), (a) and (h), (g) as shown in Fig.1.1.4.1.
  • Make Offset the Axis (ha), define as distance 4.300, (it is the sum of the individual distances 0.300 + 4.000 = 4.300, - it means 4 meters and 30 centimeters -, as you can notice on Fig.1.5.10), and select a point near the line (AB) to set the side to be executed offset.
  • Make Offset the Construct line (hg), define as distance 3.650, (it is the sum of the individual distances 0.300 + 3.350 =3.650), and select a point near the line (BD) to set the side to be executed offset.
    Draw the lines (AB), (BD) and (EF):
  • With the layer A-Wall-Inter set as current, click Home tab ► Draw panel ►select Line icon.
  • With the Line tool selected, draw the line (AB) and (BD) in the direction from A to B, and from B to point D.
  • At the command prompt : LINE Specify first point : select point A,
  • At the command prompt : LINE Specify first point : select point B,
  • At the command prompt : LINE Specify first point : select point D, and press ENTER.
    Lines (AB) and (BD) have been designed.
    With the Line tool selected, draw the line (EF) and (BD) and from E to point F :
  • At the command prompt : LINE Specify first point : select point E,
  • At the command prompt : LINE Specify first point : select point F, and press ENTER.
    Lines (EF) have been designed.

house99_interWalls_155-1a_800640 Fig.1.1.4.3 - Draw the Interior Walls - A

OFFSET lines (AB), (BD), and (EF) to create the interior walls as shown in Fig. 1.1.4.1. To do this :

  • On Ribbon, click Home tab ►Modify panel ►click Offset icon (hover on) acad icon offset 38 , or type Offset and press ENTER.
  • on the Command prompt: Offset Specify offset distance or: type 0.15  and press ENTER, where 0.15 m is the offset distance.
  • on the Command prompt: Offset Select object for offset : select line (AB).
  • on the Command prompt: Offset Specify point on side to : select any point at the right side of (AB).
  • on the Command prompt: Offset Select object for offset : select line (BD).
  • on the Command prompt: Offset Specify point on side to : select any point at the uper side of (BD).
  • on the Command prompt: Offset Select object for offset : select line (EF).
  • on the Command prompt: Offset Specify point on side to : select any point at the uper side of (EF) and press ENTER.

The result is shown in Fig.1.1.4.4 (without text).

house99_interWalls_155-2at_800640 Fig.1.1.4.4 - Draw the Interior Walls - B

Fillet lines (AB) and (BD), to do this:

  • On Ribbon, click Home tab ►Modify panel ►click Fillet icon (hover on) acad icon fillet 7426 , or type Fillet and press ENTER.
  • Select the offset of line (AB), and then the offset line of (BD), the result is as shown in Fig.1.1.4.5.

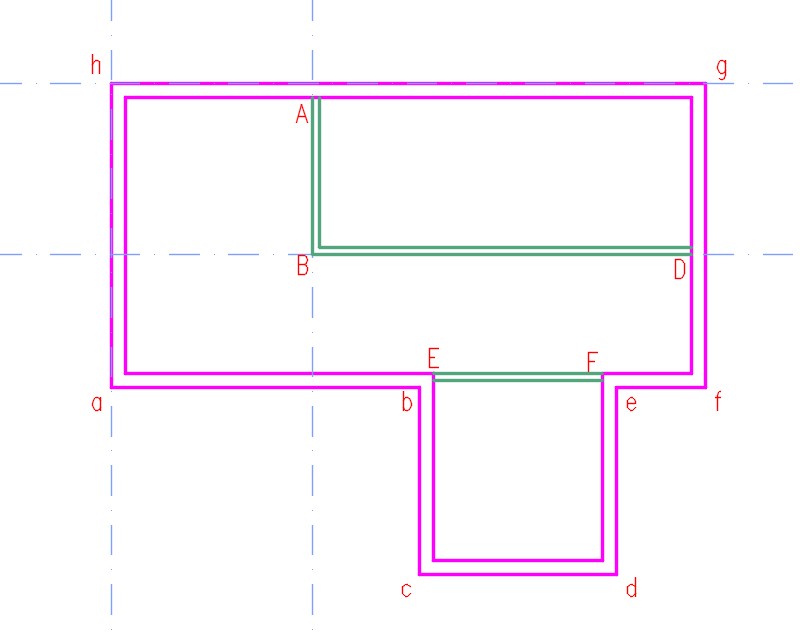

house99_interWalls_155-2b_800640_p12 Fig.1.1.4.5 - Draw the Interior Walls - Fillet Lines

Now you will draw the walls (HC), (IJ) and (FG), as shown in Fig.1.1.4.1.
Draw the Axis through (HC), (IJ) and (FG):

  • Using the Line tool on ribbon, you will draw two Axis (line with layer A-Axis), one that passes along the line (HC), one on the line (IJ) and one on the line (FG), as shown in Fig.1.1.4.1. To do this:
  • To draw axis (HC), make Offset the existing Axis (AB), define as distance 3.750, (it is the sum of the individual distances 0.150 + 3.600 = 3.750, - it means 3 meters and 75 centimeters -, as you can notice on Fig.1.1.4.1), and select a point near the line (HC) to set the side to be executed offset.
  • To draw axis (IJ), make Offset the existing Axis (AB), define as distance 1.350, (it is the distance between walls (AB) and (IJ), and select a point near the line (IJ) to set the side to be executed offset.
  • To draw axis (FG), make Offset the existing Axis (AB), define as distance 6.200, (it is the sum of the individual distances 1.350 + 0.150 + 4.700 = 6.200, - it means 6 meters and 20 centimeters -, as you can notice on Fig.1.1.4.1), and select a point near the line (IJ) to set the side to be executed offset.
    Draw the lines (HC), (IJ) and (FG):
  • With the layer A-Wall-Inter set as current, click Home tab ► Draw panel ►select Line icon.
  • With the Line tool selected, draw the line (HC), (IJ), and (BD) as shown in Fig.1.5.5.1).
  • At the command prompt : LINE Specify first point : select point C,
  • At the command prompt : LINE Specify first point : select point H, and press ENTER.
  • At the command prompt : LINE Specify first point : select point I,
  • At the command prompt : LINE Specify first point : select point J, and press ENTER.
  • At the command prompt : LINE Specify first point : select point F,
  • At the command prompt : LINE Specify first point : select point G, and press ENTER.
    The lines (CH), (IJ), and (FG) have been designed (Fig.1.1.4.6).

interiorWalls/house99_interWalls_155-2a_800640_p12 Fig.1.1.4.6 - Draw the Interior Walls

OFFSET lines (HC), (IJ), and (FG) to create the interior walls as shown in Fig. 1.1.4.1. To do this :

  • On Ribbon, click Home tab ►Modify panel ►click Offset icon acad icon offset 38, or type Offset and press ENTER.
  • on the Command prompt: Offset Specify offset distance or: type 0.15  and press ENTER, where 0.15 m is the offset distance.
  • on the Command prompt: Offset Select object for offset : select line (HC).
  • on the Command prompt: Offset Specify point on side to : select any point at the right side of (HC).
  • on the Command prompt: Offset Select object for offset : select line (IJ).
  • on the Command prompt: Offset Specify point on side to : select any point at the uper side of (IJ).
  • on the Command prompt: Offset Select object for offset : select line (FG).
  • on the Command prompt: Offset Specify point on side to : select any point at the uper side of (FG) and press ENTER.

The result is as shown in Fig.1.1.4.7 (without text).

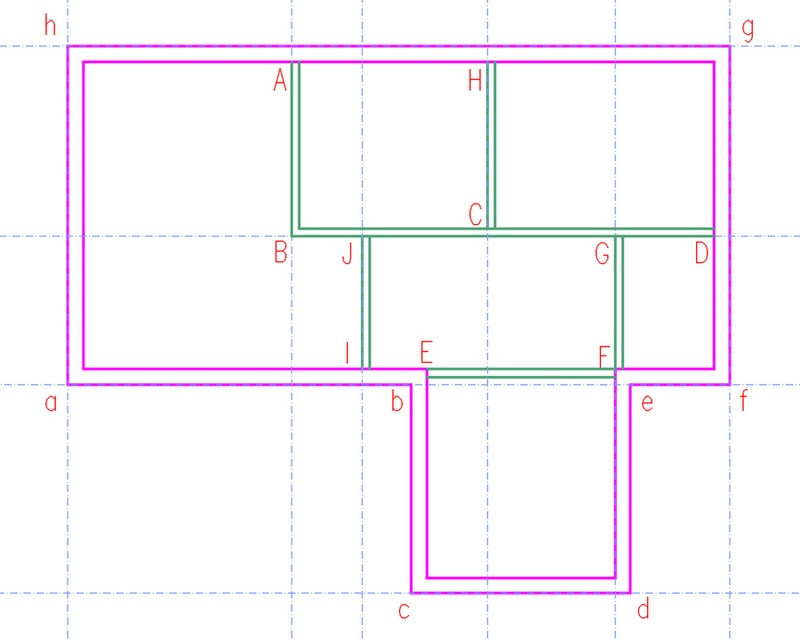

house99_interWalls_155-2_800640_p12 Fig.1.1.4.7 - House 99 - The Interior Walls

Save this drawing file under the name house99_walls, in the folder step1 you have created. The full path of the folder is: ../myProject/house99/step1/house99_walls.dwg.
